Description
Tabletop single head spout pouch filling and capping machine for liquid cream
Application of Spout pouch filling capping machine
This spout pouch filling and capping machine is suitable for liquid or medium-viscosity paste products in industries such as personal care (washing & cleaning products), food, cosmetics, pharmaceuticals, and chemical products.
3 different filling pumps:
1. Servo Gear Pump: Suitable for liquid products, such as laundry detergent, shampoo, shower gel, juice, and soy milk.
2. Servo rotor pump: Suitable for viscous products with particles, such as chili sauce, bean paste, garlic sauce, and other sauces.
3. Pneumatic Piston Pump: Suitable for liquids, pastes, and sauces; maximum filling capacity is 500g.
Features of Spout pouch filling capping machine
1. Bilingual Chinese & English touch screen, easy to operate.
2. PLC control system ensures stable operation and allows parameter adjustment without stopping the machine.
3. Can store up to 20 sets of parameters for quick and accurate product changeover.
4. Servo motor–driven filling system for higher filling accuracy.
5. Servo motor–driven capping system with adjustable and well-controlled torque.
6. Bag feeding, filling, cap feeding, capping are completed in one continuous process.
7. Program reserved for an air-pressure refill system, which can be prepared by the user or selected as an optional configuration.
Parameters of liquid cream spout pouch filling machine
Product name | Desktop single-head spout pouch filling and capping machine |
Filling material | Liquid/cream |
Filling pump | Gear pump (product-contact parts made of 316 stainless steel) |
Filling range | 30-2000ML |
Hopper | 30 L,SUS304 (standard version without hopper; It is optional.) |
Center spout pouch size | Width : 60-240 Height: 60-300（mm） |
Angled spout pouch size | Width:60-360 Height:60-320（mm） |
Speed | 20–30 bags/min (the actual output depends on product viscosity and filling volume; final capacity is subject to the actual filling volume). |
Voltage | 220V 50HZ |
Powder | 1800W |
Machine net weight | 80KG |
Aluminum part | Aluminum tray anodization |
Machine frame | SUS304 |
Filling nozzle material contact part | SUS304 |
Turntable principle | Cam indexing mechanism |
Machine size | About L890*W870*H805mm |
Working principle | Manual bag loading → Automatic bag feeding → Automatic filling → Automatic cap feeding → Automatic capping → Automatic bag discharge |
Machine details:

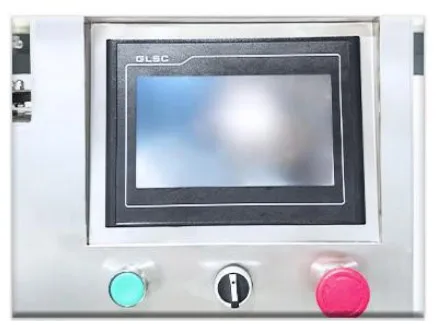

Touch screen
Touchscreen control for easy operation and parameter setting.

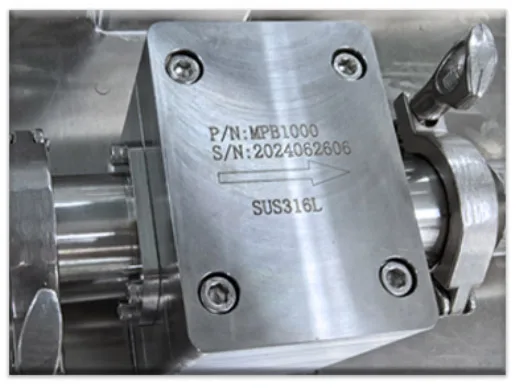

316L gear pump
Filling with 316L stainless steel gear pump, corrosion-resistant, high-precision, and easy to clean.

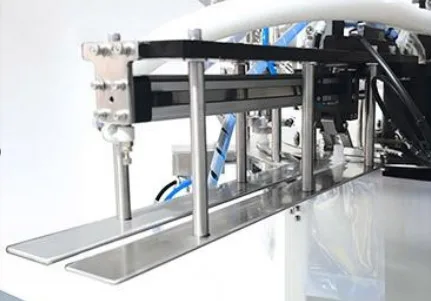

Bag loading device
Smooth bag loading for a more efficient production flow.

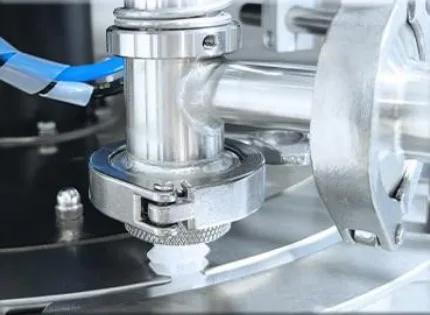

Anti-drip filling nozzle
Fiber optic sensor control, lift-type filling.

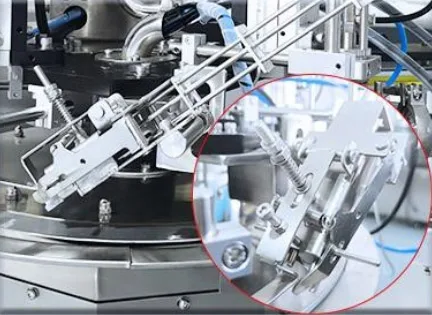

Cap-feeding track
Manually place caps onto the drop track, enabling automatic cap placement (can also be paired with a vibratory bowl for automatic feeding).

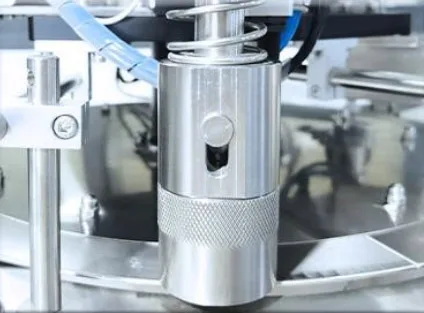

Capping device
The capping head is controlled by a servo motor, improving mold durability and efficiency.
